生活垃圾自动分类资源化处置一体机
Automatic classification and resource disposal machine for domestic garbage
天下无废，造福子孙
Waste free in the world and benefiting our children
青岛海鲸环境科技有限公司位于美丽的海滨城市青岛，于2019年由青岛科林环保设备有限公司、青岛海鲸现代能源有限公司、海鲸环保技术研究院（重庆）有限公司、联合创立的企业联盟。公司拥有由院士、教授、高级工程师组成的一流的专业化研发团队，在生活垃圾资源处理、垃圾填埋场原位生态修复、尾菜资源化处置、餐厨垃圾饲料化应用、黑臭水体生态修复、高密闭环境空气净化等多个领域获得技术突破，已拥有3项PCT国际专利、多项国家发明专利以及技术标准等多项知识产权。目前推出的多项专利产品，科技含量高、设计独特、填补了国际国内空白，得到用户和社会的高度赞誉。
Qingdao Haijing Environmental Technology Co., Ltd. is located in Qingdao, the beautiful costal city. In 2019, the company alliance was jointly founded by Qingdao Kelin Environmental Protection Equipment Co., Ltd., Qingdao Haijing Modern Energy Co., Ltd., and Haijing Environmental Technology Research Institute (Chongqing) Co., Ltd. The company has a first-class professional R & D team composed of academicians, professors and senior engineers and has obtained technical breakthroughs in domestic garbage resource processing, landfill in situ ecological repair, vegetable residual resource treatment, kitchen garbage re-used for feedingstuff, odor water ecology Repair, high-standard environmental air purification and other fields, with 3 PCT international patents, a number of national invention patents. The currently launched patented products with high scientific and technological content, unique design, have filled the international and domestic blank and are highly praised by users and society.
公司内引外联，与多家院校、科研院所保持着良好科技交流关系。具有强大的科研攻关能力。
The company has powerful research ability by establishing strong bonds with lots of universities and research institutes and also maintaining a good scientific and technological exchange relationship with them.
公司的高层管理人员皆来自于军队，不怕困难，敢打硬仗，心系社会、报效祖国！我们以良好的产品质量、完善的售后服务、高品位的管理，以军人的信誉、军队的作风赢得了各地客户的普遍赞誉。
All the company’s senior management come from military, so they are good at dealing with difficulties, daring to fight hard, and dedicate to serve the society and country. With good product quality, perfect after-sales service, high-quality management and credibility of the military, the company has won praise from all over the country.
青岛海鲸环境有限公司将不遗余力地改善我国人民的生存环境，提高人民的生活品位，秉承“创新、诚信”的两大经营宗旨，以可靠的质量、良好的信誉服务于社会。立环保大志，换日月新颜。
Qingdao Haijing Environment Co., Ltd. will spare no effort to improve the living environment of our people, improve the people ‘s living quality, adhering to the two major business purposes which are “innovation and integrity” and serve the society with reliable quality and good reputation. We will dedicate ourselves to environmental protection and make big changes to our world.
垃圾处理模式的彻底革命
造福子孙后代的千秋工程
垃圾减量比85%
变“集中污染”为“分散消纳”
分布式 小型化 智能化 源头减量 就地处置
垃圾“零”输出
….
Thorough revolution of garbage disposal mode
Millennium program to benefiting our children
Waste reduction of 85%
Turn “concentrated pollution” into “dispersion treatment”
Distributed, miniaturized and intelligent source reduction
Zero Garbage output
….
生活垃圾自动分类资源化处置一体机
Automatic classification and resource disposal machine for domestic garbage
1生活垃圾自动分类资源化处置一体机
Automatic classification and resource disposal machine for domestic garbage
该设备是集生物技术、化工技术、人工智能、机械电子等于一体的综合性分布式生活垃圾处理终端。由我公司科研团队独立研发，包含知识产权21项，其中国际专利3项。该设备能将混合的生活垃圾进行自动分类并资源化处置，一台设备同时实现垃圾的无害化、减量化、资源化目标，减量比率达85%，资源化利用率可达100%。该产品属国内首创，填补国际空白，是垃圾处置模式的革命性变革。
The device is a comprehensive distributed domestic waste treatment equipment that integrates biotechnology, chemical technology, artificial intelligence, and mechanical electronics. R & D independently by our company’s research team, including 21 intellectual property, 3 international patents. The device can automatically classify the mixed domestic garbage and turn the garbage into resource. All at once, the equipment can make the garbage harmless and turn them into new resource. Also the reduction ratio of garbage is 85%, the resource utilization is up to 100%. The product is the first in China and has filled the international blank, also is a revolutionary change of garbage disposal mode.
2使用该设备后无需人工分类了吗？
使用该设备无需人工分类。
提倡生活垃圾源头减量。
2 .Is there any manual classification after using this device?
No manual classification is required when use this device.
Advocate reduction of the source of domestic garbage.
3.处理量是多少？几人操作？
目前常用型号为:
QDL1200A型/QDL2000A型
生活垃圾处理量为1吨/次；2吨/次；
设备只需一人操作。
- What is the amount of processing? How many people needed?
Currently used models:
QDL1200A / QDL2000A
The amount of domestic waste treatment is 1 ton / time; 2 tons / time;
The device only needs one person.
- 设备是怎样自动分类的？
混合的生活垃圾进入设备后通过水分检测进行干湿分类、通过碳原子检测分为有机物和无机物、通过生物识别分为可降解物与不可降解物，再经过化学和生化处理最终产出五类物质：有机土、废钢铁、碎砖石、可燃物、冷凝水。整个过程由设备自动完成，无需人为干预。
- How does the device automatically classify?
After mixing domestic waste enters the equipment, the dry and wet classification is performed through moisture and is divided into organic materials and inorganic substances through the carbon atomic detection, and is also divided into degradable and non-degrading by biometric identification, and then after chemically and biochemical treatment, five substances come out: organic soil, scrap steel, broken brick and stone, combustible material, condensed water. The entire process is automatically completed by the device, no need for human intervention.
- 冷凝水是怎么来的？为什么没有垃圾渗滤液？
设备运行过程中发生生化反应，生化反应是放热反应，温度可达75°c，生化反应过程中产生的蒸汽经过冷凝机冷凝后产生冷凝水。所以处理过程中无垃圾渗滤液产生。
- how does the condensed water come? Why is there no garbage leachate?
The biochemical reaction occurs during the operation of the equipment, the biochemical reaction is exothermic reaction, the temperature can reach 75 ° C, the steam generated during the biochemical reaction is condensed through the condenser. Therefore, there is no waste leachate during process.
6.设备处理一吨垃圾的成本是多少？
垃圾的成分不同处理成本不同，平均每吨的处理成本约180元左右。
- What is the cost of devices to process one ton of garbage?
The costs depend on the ingredients of the garbage and the average treatment costs per ton are about 180 Chinese Yuan.
7.与全国的垃圾处理成本比较是高还是低？
垃圾处理的全社会成本是指垃圾从产生到处理完毕的所有花费总和；
- Comparing with the average costs of processing of garbage in China, is it cheaper or more expensive?
The whole social cost of garbage disposal includes all the costs from produce to dispiosal;
土地成本+收运成本+处理成本+设施设备成本+分类成本+电价补贴+环境补贴+行政成本+健康成本
Land Cost + Collection Cost + Treatment Cost + Facilities Equipment Cost + Category Cost + Electricity Price Subsidy + Environment Subsidy + Administrative Cost + Health Cost
全国各地垃圾处理成本相差较大，现行平均成本约580元/吨。全社会综合成本均在1000元/吨以上。
据统计，2018年北京市的垃圾处理成本为2253元/吨。
The garbage disposal costs in all parts of the country differ, and the current average cost is about 580 yuan / ton. The integrated cost of the whole society is 1,000 yuan / ton.
According to statistics, the garbage disposal cost in Beijing in 2018 is 2253 yuan / ton.
8.安装设备是否做基础？
设备本身不需要基础，但垃圾收集过程中有跑冒漏滴问题，建议基础硬化为好。
- Does the installation of device need a foundation?
The equipment itself does not require any basis, but there is some dripping on the garbage collection process, so it is recommended to harden the basis.
9.设备占地多大？能耗多少？
设备尺寸长*宽*高13145*2600*3160mm
相当于一个集装箱大小。
平均能耗265度/吨。
- How big is the device? What is the energy consumption?
Equipment size * width * high 13145 * 2600 * 3160mm
Equivalent to a container size.
The average energy consumption is 265 degrees / ton.
10.安装这个设备是否需要环评？
不需要环评只需要备案。《环评名录》规定生活垃圾50-10吨/天需要环评，1-10吨/天仅需备案，1吨/天以下无需备案。备案时打开所在地的生态环境局网站，找到对应窗口自行备案，10分钟即可办理完毕。
- Do you need an EIA to install this device?
It is only necessary to file a record. “EIA List” stipulates that 50-10 tons / day of domestic garbage needs EIA, 1-10 tons / day will only need to be filed, 1 ton / day does not require a record. Open the local Ecological Environment Bureau website and find the corresponding window to file it by yourself, only 10 minutes needed.
11.可燃物发电与原生垃圾发电有什么优势？
每1000吨生活垃圾平均产生120吨可燃物。直接减量88%。
- 占地：1000吨/天的垃圾发电占地约500亩；120吨/天可燃物发电占地50亩；
- What is the advantage of combustible power generation and native garbage power?
120 tons of flammable products were produced at 1,000 tons of domestic garbage. Directly reduce 88%.
- footprint: The garbage power generation of 1,000 tons / day covers an area of about 500 mu; 120 tons / day combustible, electricity generated 50 acres;
2、投资：1000吨/天的垃圾发电投资4-10亿元；120吨/天可燃物发电投资1亿元；
- investment: 1000 tons / day garbage power supply investment 400 million to 1 billion yuan; 120 tons / day combustion production investment of 100 million yuan;
3、渗滤液：原生垃圾发电需建渗滤液处理工程；用可燃物发电无渗滤液产生。
3．leachate: native garbage power generation needs to be allowed to process the proofusion process; there is no leachate using flammable generated electricity.
4、灰渣：原生垃圾发电灰渣的数量一般为垃圾焚烧前总重量的15%左右；可燃物灰渣低于5%。
4．ash: the number of native garbage generated grasses is generally about 15% before the garbage incineration; the combustible gray slag is less than 5%.
5、污染物：主要污染物为二噁英、NOx、SO2等。原生垃圾发电污染物是燃后控制；可燃物发电为燃前控制，
即在可燃物中加入脱CL剂、脱氮剂。主要污染物有效降低80%以上。
5． pollutants: main pollutants are dioxin, NOx, SO2, etc. Native waste power pollutants are post-burning control; combustible products are thermal control,
That is, an off CL agent and a denitride agent are added to the combustible matter. The main pollutants are effectively reduced by more than 80%.
绿水青山就是金山银山
Lucid waters and lush mountains are invaluable assets.
每吨生活垃圾产出多少物质？
How much material is produced per ton of domestic waste?
垃圾的成分不同，产生的物质的量不同。不同地区垃圾的成分不同、同一地区不同季节垃圾的成分也不相同。根据使用单位在设备运行一年后所提供的数据，初步估算出产出物的体积比例与质量比较。
Different components of garbage produce different amounts of substances. The composition of garbage in different regions is different, and the composition of garbage in different seasons in the same region is also different. According to the data provided by the user after one year of equipment operation, the volume proportion and mass comparison of the products are preliminarily estimated.
平均每年每吨生活垃圾产生如下物质：
① 冷凝水：120Kg
② 废钢铁：2kg
③ 有机肥：250Kg
④ 可燃物：120Kg
⑤ 碎砖石：25kg
On average, the following substances are produced per ton of domestic waste every year:
- Condensate water: 120kg
- Steel pieces: 2kg
③ Organic fertilizer: 250kg
- Combustibles: 120kg
- Brick and stone: 25kg
垃圾源头减量：生活垃圾经过设备无害化处理后减量比率在70%-88%。减量比与垃圾成分变化有关
减少转运成本：改变传统的转运模式，无需垃圾中转站及转运车，收集之后直接处理，节省大量财政支出
资源利化用率：全部产出物皆可实现100%利用，低能耗无污染，产生经济价值，真正实现垃圾变废为宝
Waste source reduction: the reduction rate of domestic waste after harmless treatment by equipment is 70% – 88%. The reduction ratio is related to the change of waste composition
Reduce the transfer cost: change the traditional transfer mode, without waste transfer station and transfer vehicle, and deal with it directly after collection, so as to save a lot of financial expenditure
Utilization rate of resources: all products can be fully utilized, with low energy consumption and no pollution, generating economic value, and truly turning waste into treasure
产出物的种类及去向
1.碎砖石：碎砖石来源于生活垃圾中的碎玻璃、碎瓷器、碎石块等。经处理后得到体积相近的碎块可直接用做铺路基石。深加工后可制成建筑基材。
2.冷凝水：生化反应过程中产生的蒸汽经过冷凝机冷凝后产生冷凝水。达到国家《农业灌溉用水标准》。可直接用做绿化用水。
Type and destination of products
- Broken brick and stone: the broken brick and stone comes from broken glass, broken porcelain, crushed stone, etc. in domestic waste. After treatment, the fragments with similar volume can be directly used as paving cornerstone. After deep processing, it can be made into building substrate.
- Condensate water: the steam generated in the biochemical reaction process is condensed by the condenser to produce condensate water. The water meets the national standard for agricultural irrigation water. It can be directly used as greening water.
3.废钢铁：废钢铁主要来源于生活垃圾中的易拉罐、铁桶、包装盒等。该部分产出物可直接进行回收，产生经济效益。
4.有机土：有机土是餐厨垃圾、杂草、碎树叶、废纸等经过处理后的产出物，达到国家《绿化种植土壤标准》，可广泛用于花卉、苗木种植及城市绿化用土。将设备产出的有机肥作为微生物载体，添加各类功能性细菌，可转化为价值很高的功能性有机菌肥，目前市场价1600—4500元/吨。
- Waste iron and steel: waste iron and steel mainly comes from cans, iron buckets, packing boxes, etc. in domestic waste. This part of the output can be directly recycled to produce economic benefits.
- Organic soil: organic soil is the processed output of kitchen waste, grass, broken leaves, waste paper and so on. It meets the national soil standard for greening planting and can be widely used for flower and seedling planting and urban greening. Taking the organic fertilizer produced by the equipment as the microbial carrier and adding various functional bacteria, it can be transformed into functional organic bacterial fertilizer with high value. At present, the market price is 1600-4500 yuan / ton.
5.可燃物：①可燃物可以加工成RDF燃料，用它发电与现在的混合垃圾发电相比较占地面积减少90%，投资减少90%，CO2减排高达88%。
- Combustibles: ① combustibles can be processed into RDF fuel for power generation. Compared with the current mixed waste power generation, the floor area is reduced by 90%, the investment is reduced by 90%, and the CO2 emission reduction is as high as 88%.
②裂解燃料气，每吨RDF可以裂解热值为9000kal/kg的燃料气1700m3。100万人口的城市生活垃圾全部裂解每年产气9000万m3，可基本满足100万人口一年的生活用气。
公司研发的《低温绝氧催化裂解装置》已通过中试，
每吨可燃物可以产燃料 油600kg、燃料气100-150m3，
35KG左右的燃料碳。调整设备参数可更改油、气、碳
的产出比例。
② For cracked fuel gas, 1700m3 of fuel gas with calorific value of 9000kal / kg can be cracked per ton of RDF. The urban domestic waste of 1 million people is completely cracked, and the annual gas production is 90 million m3, which can basically meet the domestic gas consumption of 1 million people in one year.
The low temperature oxygen free catalytic cracking unit developed by the company has passed the pilot test,
Each ton of combustibles can produce 600kg fuel oil and 100-150m3 fuel gas,
About 35kg of fuel carbon. Proportion of output of oil, gas and carbon can be changed by adjusting equipment parameters.
冷凝水达到《农田灌溉水质标准》GB/5084-2021
有机土达到《绿化种植土壤标准》CJ/T 340-2011
空气达到《恶臭污染物排放标准》GB/14554-93
The condensed water meets the water quality standard for farmland irrigation (GB / 5084-2021)
Organic soil meets the soil standard for greening planting CJ / T 340-2011
The air meets the emission standard of odor pollutants GB / 14554-93
垃圾处理方法的对比
现有的垃圾处理方法缺陷
1.焚烧法：前期投资较大， 对于垃圾热值有一定要求， 焚烧过程有产生二恶英、NOX、SO2、HCL等污染物。
2.填埋法：
占地面积大、 选址困难、 运行维护难度大， 垃圾渗滤液会污染土壤和地下水，臭气污染较重
3.堆肥法：
效率低， 堆肥周期长， 技术复杂。占地面积大， 对于垃圾有机质含量要求高 。
4.热解法：
热解法主要针对有机质成分，前期投资费用高， 技术不够成熟， 装置维护困难。
Comparison of waste treatment methods
Defects of existing waste treatment methods
- Incineration method: the initial investment is large, there are certain requirements for the calorific value of waste, and the incineration process produces dioxin, NOx, SO2, HCl and other pollutants.
- Landfill method:
It covers a large area, has difficulty in site selection and operation and maintenance. Landfill leachate will pollute soil and groundwater, and the odor pollution is serious.
- Composting method:
Low efficiency, long composting cycle and complex technology. It covers a large area and has high requirements for the content of organic matter in garbage.
- Pyrolysis method:
Pyrolysis method is mainly aimed at organic matter composition, with high initial investment cost, immature technology and difficult device maintenance.
生活垃圾资源化处理机
分布式、小型化、智能化。从源头上解决垃圾问题。
一次性完成无害化、减量化、资源化处理。提高资源的回收利用率，在解放人力的同时产生了巨大的经济效益和社会效益。
Domestic waste recycling processor
Distributed, miniaturized and intelligent. Solve the garbage problem from the source.
Complete harmless, reduction and resource treatment at one time. Improving the recycling rate of resources has not only liberated manpower, but also produced huge economic and social benefits.
设备占地面积小，造型美观，设计新颖，无臭气、无渗滤液，无噪音。处理过程中不产生二次污染。
The equipment has the advantages of small floor area, beautiful appearance and design, no odor, no leachate and no noise. There is no secondary pollution in the treatment process.
该设备按照型号处理一次只需20小时，应急状态下处理时间可缩短为6小时。设备操作简单。
该设备可处理人类日常生活的废弃物，且运行能耗低，节能减排。平均处理一吨≤265kw/h.
垃圾处理不出小区，因地制宜、依靠科技力量源头上解决垃圾污染。垃圾无害化减量化实现100%资源化利用，最终取消垃圾中转站和填埋场
According to the model, it only takes 20 hours to process the equipment once, and the processing time can be shortened to 6 hours in emergency. The equipment is easy to operate.
The equipment can deal with the waste of human daily life, and has the advantages of low energy consumption, energy conservation and emission reduction. One ton of average treatment ≤ 265KW / h
Garbage can not be disposed out of the community, and garbage pollution can be solved at the source according to local conditions and relying on scientific and technological forces. The waste will be harmless and reduced to achieve 100% resource utilization, and finally the waste transfer station and landfill will be cancelled.
技术优势
①自动分类、解放人力：生活垃圾按照居民原有的生活习惯投放，由环卫工人收集到处置点。
设备运行中无需人工干预，设备进行自动分类。
②占地小、处理时间短：生活垃圾自动分类资源化处置设备的大小如同一个集装箱，设计新颖
垃圾从投入到处置完毕只需要20小时，应急状态下可缩短至6小时。
③低能耗、高转化率：生活垃圾在生化反应过程中产生大量热量，这些能量被重新收集利用参与到设备运行中来，极大减少了设备能耗，提高了资源的转化率。
④集约化程度高：一台设备可同时实现生活垃圾的资源化、无害化、减量化处置效果。较传统的收集转运处置模式节约了大量的人力物力财力，有效节约社会成本
⑤处理过程无污染：生活垃圾投入后设备自动除臭，运行过程无臭味溢出，无垃圾渗滤液，无废水、废气。产出物达到无害化标准
⑥就地处置、无需转运：使用该设备后生活垃圾就地处置，无需建设垃圾中转站，无需多次、长距离转运。避免了转运过程中的二次污染，实现垃圾不出村，垃圾不出小区
⑦资源化利用率可达100%
：设备产出物冷凝水直接排放、废钢铁就地回收、碎砖石用于设路基石，有机土园林绿化苗木种植。可燃物转化为RDF用于发电或制油。所有产出物达到100%再利用。垃圾变废为宝。
⑧大数据网络实时监控：不断升级的网络化监控系统，利用云端分析，智能检测“源头”信息，实现海量?活垃圾数据互联共享，对科学决策、政府行政管控具有重要意义
Technical advantages
① Automatic classification and emancipation of manpower: domestic waste is put in according to the original living habits of residents and collected by sanitation workers to the disposal point.
There is no need for manual intervention during the operation of the equipment, and the equipment is automatically classified.
② Small land occupation and short processing time: the size of the automatic classification and resource disposal equipment of domestic waste is like a container, and the design is up to date.
Waste disposal can be shortened from 6 hours to 20 hours.
③ Low energy consumption and high conversion rate: domestic waste generates a lot of heat in the process of biochemical reaction, which is collected and reused to participate in the operation of the equipment, greatly reducing the energy consumption of the equipment and improving the conversion rate of resources.
④ High degree of intensification: one equipment can realize the resource, harmless and reduction disposal effect of domestic waste at the same time. Compared with the traditional collection, transportation and disposal mode, it saves a lot of human, material and financial resources and effectively saves social costs
⑤ No pollution in the treatment process: after the domestic waste is put into operation, the equipment will automatically deodorize, and there will be no odor overflow, no landfill leachate, no waste water and waste gas during operation. The output reaches the harmless standard
⑥ On site disposal without transfer: after using the equipment, domestic waste is disposed on site without building a waste transfer station and multiple and long-distance transfer. The secondary pollution in the transfer process is avoided, and the garbage does not leave the village and the garbage does not leave the community
⑦ Resource utilization rate can reach 100%
: the condensate produced by the equipment is directly discharged, the waste steel is recovered on site, and the broken bricks and stones are used to set the foundation stone of the road, and the organic soil is used for landscaping and seedling planting. Combustibles are converted to RDF for power generation or oil production. 100% reuse of all outputs. Turn waste into treasure.
⑧ Big data network real-time monitoring: the continuously upgraded networked monitoring system uses cloud analysis to intelligently detect the “source” information, so as to realize massive “source” monitoring? The interconnection and sharing of live garbage data is of great significance to scientific decision-making and government administrative control
运行原理
混合的生活垃圾进入设备后经过水分检测进行干湿分类，经过C原子检测进行有机无机物分类、经过生物识别系统进行可降解与不可降解分类后，再经过化学和生化处理产出了五类物质：分别是冷凝水、有机肥、废钢铁、碎砖石和可燃物。整个过程自动完成，无需人为干预
Operating principle
After the mixed domestic waste enters the equipment, it is subject to moisture detection for dry and wet classification, C-atom detection for organic and inorganic matter classification, biological identification system for degradable and non degradable classification, and then chemical and biochemical treatment to produce five types of substances: condensate, organic fertilizer, waste steel, broken brick and combustible materials. The whole process is completed automatically without human intervention
操作流程
1、收集：环卫工人每天将收集的生活垃圾集中到设备处。
2、装填：操作人员遵循操作规范启动设备，开始装填。
3、运行：物料在处理机内按照设定的程序自动分类。
4、分类：设备自动分类卸料，无需人工干预。
5、产出物：操作员将产出物规范放置于安置点。
- 操作员：1人。
Operation process
- Collection: sanitation workers collect domestic garbage to the equipment every day.
- Loading: the operator starts the equipment and starts loading according to the operation specifications.
- Operation: materials are automatically classified in the processor according to the set program.
- Classification: the equipment automatically classifies and unloads materials without manual intervention.
- Output: the operator places the output specification at the resettlement site.
- Operator: 1 person.
产品实施案例

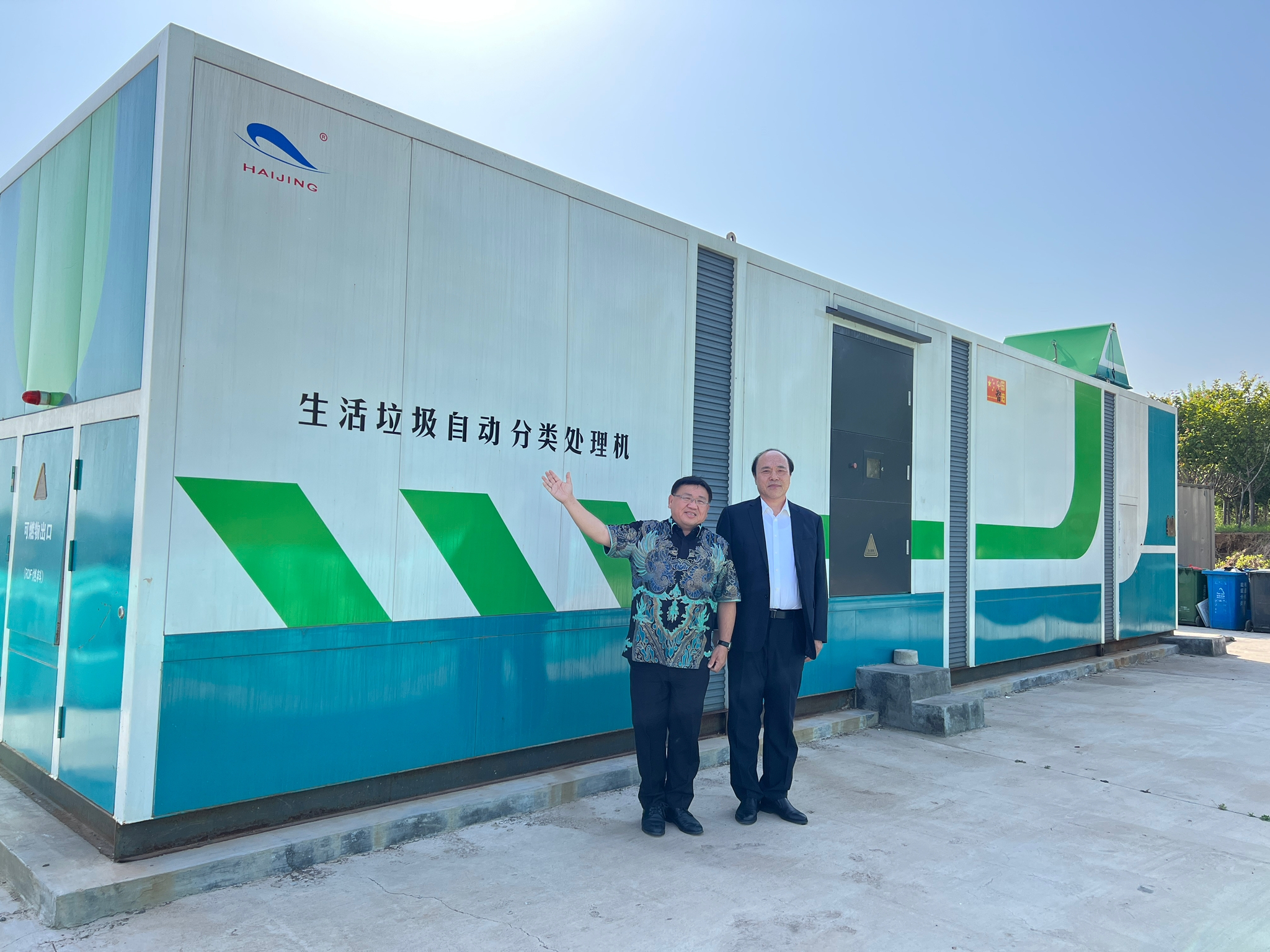

设备运行现场
设备使用评价报告：小荒社区示范点服务于小荒、大荒、郭家村共580户1800人。每天平均产生生活垃圾1150kg。于2020年6月布放，连续工作至今。
1、设备设计理念新颖、功能齐全，完全可以用于城乡农村生活垃圾的分类和资源化处理。
2、该设备的运用，极大减少了人工分类，可平均节约垃圾运输成本85%，降低垃圾综合处理成本65%
3、该设备对生活垃圾的“减量化、无害化、资源化”效果显著。
4、产出物均为可用资源。增加附加值，直接产生经济效益。
5、垃圾的完全处理及资源化利用，高度契合“无废城市”的含义。
6、该设备的使用为建立“垃圾零排放小区”、“垃圾零排放企业”、“垃圾零排放村庄”提供了有力的技术保障。
Product implementation cases
Equipment operation site
Equipment use evaluation report: the demonstration site of Xiaohuang community serves 1800 people in 580 households in Xiaohuang, Dahuang and Guojia village. The average daily domestic waste is 1150Kg. It was deployed in June 2020 and has been working continuously until now.
- The design concept of urban and rural garbage classification equipment can be used for rural garbage treatment.
- The application of the equipment greatly reduces the manual classification, saves 85% of the average waste transportation cost and 65% of the comprehensive waste treatment cost
- The equipment has a remarkable effect on the “reduction, harmlessness and recycling” of domestic waste.
- The outputs are available resources. Increase added value and directly produce economic benefits.
- The complete treatment and resource utilization of garbage are highly consistent with the meaning of “waste free city”.
- The use of the equipment provides a strong technical guarantee for the establishment of “zero waste discharge community”, “zero waste discharge enterprise” and “zero waste discharge village”.
运营模式
- 设备销售
- 承包运营
3.融资租赁
十万亿巨大市场诚邀加盟
Operation mode
1.Equipment sales
2.Contracted operation
- Financial leasing
We sincerely invite you to join us in the huge market of 100 billion yuan
技术成果战略储备
目前我公司在研项目12项，涉及专利及知识产权40项。技术成果转化完成6项，为可持续发展战略提供了有力的技术支持和设备保障。
智能网络化智慧平台
★“源头”采集“实时数据”，是业内的一大创新技术，数据真实、实时、详尽。
★实现海量生活垃圾数据互联共享，对科学决策、政府行政管控具有重要意义。
★数据云端分析，智能检测，?幅度提升垃圾处理效率，提高资源整合力度。
★远程管理和监控系统运营情况，为设备管理、计费、客户协同、 政府管控提供工具。
Strategic reserve of technological achievements
At present, our company has 12 research projects, involving 40 patents and intellectual property rights. 6 technological achievements have been transformed, providing strong technical support and equipment guarantee for the sustainable development strategy.
Intelligent networked intelligent platform
★ “source” collecting “real-time data” is a major innovative technology in the industry. The data is real, real-time and detailed.
★ realizing the interconnection and sharing of massive domestic waste data is of great significance to scientific decision-making and government administrative control.
★ data cloud analysis, intelligent detection, greatly improve the efficiency of waste treatment and improve the integration of resources.
★ remotely manage and monitor the operation of the system, and provide tools for equipment management, billing, customer coordination and government control.
黑臭水体治理
“五步法”微生物生态修复技术是将黑臭水体按照以下五个步骤进行：消底泥、降氨氮、净水质、控藻类、设置生态支持系统。使用该技术可将底泥还原成便于有益微生物生长的环境，消除蓝藻水、老绿水、油膜水等污染水体、增加水体透明度，长效控藻，回复生态，达到永久达标效果
Black odor water treatment
“Five step” microbial ecological restoration technology is to carry out the black and smelly water body according to the following five steps: eliminating sediment, reducing ammonia nitrogen, purifying water quality, controlling algae and setting up ecological support system. Using this technology, the sediment can be reduced to an environment convenient for the growth of beneficial microorganisms, eliminate the polluted water bodies such as cyanobacteria water, old green water and oil film water, increase the transparency of water bodies, control algae for a long time, restore ecology, and achieve the effect of permanent compliance
绝氧低温催化裂解装置
可燃物是生活垃圾自动分类资源化处置一体机的产出物之一，其主要成分为塑料、橡胶、织物等石化品废弃物，通过该设备转换后可用来制油、制气、发电、供暖，是城市的“现代能源储备库”。设备连续作业、无污染、低能耗全程自动化生产无需人工干预。油、气产率可随意转换。
Oxygen free low temperature catalytic cracking device
Combustibles are one of the products of the integrated automatic classification and resource disposal machine of domestic waste. Their main components are petrochemical wastes such as plastics, rubber and fabrics. After conversion, they can be used for oil, gas, power generation and heating. They are the “modern energy reserve” of the city. The equipment operates continuously, has no pollution and low energy consumption, and the whole process automatic production does not need manual intervention. Oil and gas yields can be converted at will.
餐厨垃圾菌蛋白全元素转化机
国内饲料缺口巨大，使用该设备，将餐厨垃圾转化为蛋白饲料，克服同源性污染，处理过程无臭味、无噪音、无需固液分离、无污水排放，设备自动化运行，无需人工干预产出物为：蛋白饲料、冷凝水、碎砖石、废钢铁、可燃物
Food waste bacterial protein all element conversion machine
There is a huge feed gap in China. Using this equipment, the kitchen waste can be transformed into protein feed to overcome homologous pollution. The treatment process has no odor, noise, solid-liquid separation and sewage discharge. The equipment operates automatically without manual intervention. The products are protein feed, condensate water, broken bricks and stones, waste steel and combustibles
集约化尾菜生产酵素肥料
尾菜作为农业废弃物产量惊人。使用该技术可充分利用消纳尾菜，消除污染、变废为宝，生产出的酵素菌获得农业部无公害产品使用肥料认证，在有机作物种植上应用前景广阔，尾菜原料全部转化，无“三废”排放。
Intensive production of enzyme fertilizer from vegetables garbage
The output of vegetable garbage agricultural waste is amazing. Using this technology can make full use of vegetable garbage, eliminate pollution and turn waste into treasure. The produced enzyme bacteria have obtained the certification of pollution-free products and fertilizer from the Ministry of agriculture. It has broad application prospects in organic crop planting. All vegetable raw materials are transformed and there is no “three wastes” emission.
PPP运营模式举例
山东省**镇垃圾资源化处置PPP投资效益分析
一、**镇垃圾的基本情况
**镇地处山东半岛，系青岛市卫星城镇，总面积171.9平方公里，辖108个行政村，人口10万，每天产生垃圾120吨。
一、现有的垃圾处理方式总费用—外运
垃圾的外运量: 90吨/天; 其余20-30吨就地填埋; 合计每年的外运约为3万吨；
1、、服务费用
a、村庄保洁费 309万/年；
b、物业保洁费 258万/年；
c、垃圾清运费 143万/年；（从村庄到垃圾中转站）；
d、垃圾外运费 810.3万/年；
e、焚烧处理费： 443.48万/年；（焚烧厂合同价)
f、发电补贴费：91.98万/年（当地政府补贴部分）
g、分类督导员：494.4万/年
h、垃圾堆肥房人工费：247.2万/年
2、固定资产投资共3089万元
a、垃圾中转站 720万元
b、垃圾分类房 824万元
c、垃圾堆肥房 1545万元
固定资产投资, 按10年折旧, 每年折旧308.9万元。
现行的垃圾处理模式处理垃圾每年共需：3106.26万/年。
二、PPP模式处理垃圾—垃圾资源化
1、设备投资9000万元；（60台2T设备，成本150万元）。
2、设备按15年折旧计, 每年折旧600万元;
按10年折旧计，每年折旧900万元；
3、设备耗电：590.4万/年；
4、水费0.6万/年；
5、耗材：174.32万/年；
6、人工费：48万/年;
7、每年融资费利息：108万元（政府贴息）;
8、设备维修保养费：7.2万元.
9、使用设备每年运行费用：
按15年折旧：1528.52万元, 比现行节省1577.74万元
按10年折旧：1828.52（万元），比现行节省1277.74万元；
10、每年产出物的总价值：265.46万元
三、投资效益分析与比较
1、按照**镇综合价格对比
按15年折旧计：
A、总投入9000万元，每年总收入为：3371.72万元。
B、15年收入为50575.8万元；
C、15年毛利为：2764.8万元
Example of PPP operation mode
PPP investment benefit analysis of waste recycling disposal in * * town, Shandong Province
1、 * * basic information of garbage in the town
**Located in Shandong Peninsula, the town is a satellite town of Qingdao, with a total area of 171.9 square kilometers. It governs 108 administrative villages with a population of 100000 and produces 120 tons of garbage every day.
1、 Total cost of existing waste treatment methods – outward transportation
Outward transportation volume of garbage: 90 tons / day; The remaining 20-30 tons are buried in situ; The total annual outward transportation is about 30000 tons;
- . service fee
- Village cleaning fee: 3.09 million / year;
- Property cleaning fee of 2.58 million / year;
- Garbage removal and transportation fee: 1.43 million / year; (from village to waste transfer station);
- Garbage outward transportation fee: 8103000 yuan / year;
- Incineration treatment fee: 4.4348 million / year; (contract price of incineration company)
- Power generation subsidy: 919800 yuan / year (local government subsidy)
- Classification Supervisor: 4.944 million / year
- Labor cost of waste composting room: 2.472 million / year
- The total investment in fixed assets is 30.89 million yuan
- Waste transfer station 7.2 million yuan
- Garbage sorting room: 8.24 million yuan
- Garbage composting room 15.45 million yuan
Fixed asset investment is depreciated for 10 years, with an annual depreciation of 3089000 yuan.
The current waste treatment mode requires a total of 31.0626 million yuan per year.
2、 Waste treatment in PPP mode — waste recycling
- Equipment investment: 90 million yuan; (60 sets of 2T equipment, cost 1.5 million yuan).
- The equipment is depreciated for 15 years, with an annual depreciation of 6 million yuan;
Based on 10-year depreciation, the annual depreciation is 9 million yuan;
- Power consumption of equipment: 5.904 million / year;
- Water fee: 60000 / year;
- Consumables: 1743200 yuan / year;
- Labor cost: 480000 / year;
- Annual interest on Financing fee: 1.08 million yuan (government discount);
- Equipment maintenance fee: 72000 yuan
- Annual operation cost of equipment:
Depreciation by 15 years: 15.2852 million yuan, 15.7774 million yuan less than the current one
Depreciation by 10 years: 18.2852 million yuan, 12.7774 million yuan less than the current one;
- Total value of annual output: 2.6546 million yuan
3、 Analysis and comparison of investment benefits
- Comparison according to the comprehensive price of * * town
15 year depreciation:
- The total investment is 90 million yuan, and the total annual income is 33.7172 million yuan.
- The 15 year income is 505758000 yuan;
- 15 year gross profit: 27.648 million yuan
战略发展
青岛海鲸环境科技有限公司成立以来，与时俱进，开拓创新，聚焦环境治理领域的技术热点与难点。刻苦攻关，时刻走在政策前沿！为改变传统垃圾处置模式不断革新，切合实际因地制宜采用小型化、分布式、智能化的处理方式，降低了收集、转运和处置设施建设和运行成本。为推进生活垃圾就地分类和资源化利用，健全生活垃圾收集、转运和处置体系带来了质的飞跃。
2019年成立青岛海鲸环境科技有限公司
2020年成立海鲸（重庆）环保技术研究院
2021年2月成立青岛海鲸驻海南办事处
2021年5月成立青岛海鲸驻北京办事处
2021年9月成立青岛海鲸（宁波）分公司
2021年12月成立青岛海鲸现代能源有限公司
2021年拟成立青岛海鲸（连云港）装备公司
2022年1月成立青岛海鲸蔚来再生资源有限公司
2022年2月青岛海鲸驻新疆办事处
计划2022年打造全国首个农村生活垃圾分类和资源化利用示范县，做到垃圾零输出
资源利用率达100%。彻底实现“无废城市”目标。
计划2023年建成有机菌肥研发生产基地，彻底消除农村餐厨尾菜等污染。
计划2025年建成垃圾裂解燃料油及RDF转换高纯度塑料颗粒研发生产基地。
让生活垃圾变废为宝！资源无限循环！
Strategic development
Since its establishment, Qingdao Haijing Environmental Technology Co., Ltd. has kept pace with the times, explored and innovated, and focused on the technical hotspots and difficulties in the field of environmental governance. Work hard to tackle key problems and always stay at the forefront of policy! In order to change the traditional waste disposal mode, we innovate constantly, adapt to local conditions, adopt miniaturized, distributed and intelligent treatment methods, and reduce the construction and operation costs of collection, transportation and disposal facilities. In order to promote the on-site classification and resource utilization of domestic waste, and improve the collection, transportation and disposal system of domestic waste, it has brought a qualitative leap.
Qingdao Haijing Environmental Technology Co., Ltd. was established in 2019
Haijing (Chongqing) environmental protection technology research institute was established in 2020
Qingdao Haijing office in Hainan was established in February 2021
Qingdao Haijing office in Beijing was established in May 2021
Qingdao Haijing (Ningbo) branch was established in September 2021
Qingdao Haijing modern energy Co., Ltd. was established in December 2021
Qingdao Haijing (Lianyungang) equipment company will be established in 2021
Qingdao Haijing Weilai renewable resources Co., Ltd. was established in January 2022
February 2022: Qingdao Haijing office in Xinjiang
It is planned to build the country’s first rural domestic waste classification and resource utilization demonstration county in 2022 to achieve zero waste output
Resource utilization rate reaches 100%. Fully realize the goal of “waste free city”.
It is planned to build an organic bacterial fertilizer R & D and production base in 2023 to completely eliminate the pollution of rural kitchen garbage.
It is planned to build the R & D and production base of waste pyrolysis fuel oil and RDF conversion high-purity plastic particles in 2025.
Turn domestic garbage into treasure! Unlimited circulation of resources!
